Wemos D1 Mini ESP8266 WiFi Development Board
Compact ESP8266 D1 Mini WiFi development board with 4MB flash, 11 digital I/O pins, and Micro-USB interface for compact IoT and smart home projects.
Wemos D1 Mini ESP8266 WiFi Development Board is an original, pre-tested electronic module designed for Arduino, ESP32, Raspberry Pi, robotics, and embedded engineering projects. Includes verified pinout compatibility and nationwide express shipping across Pakistan.

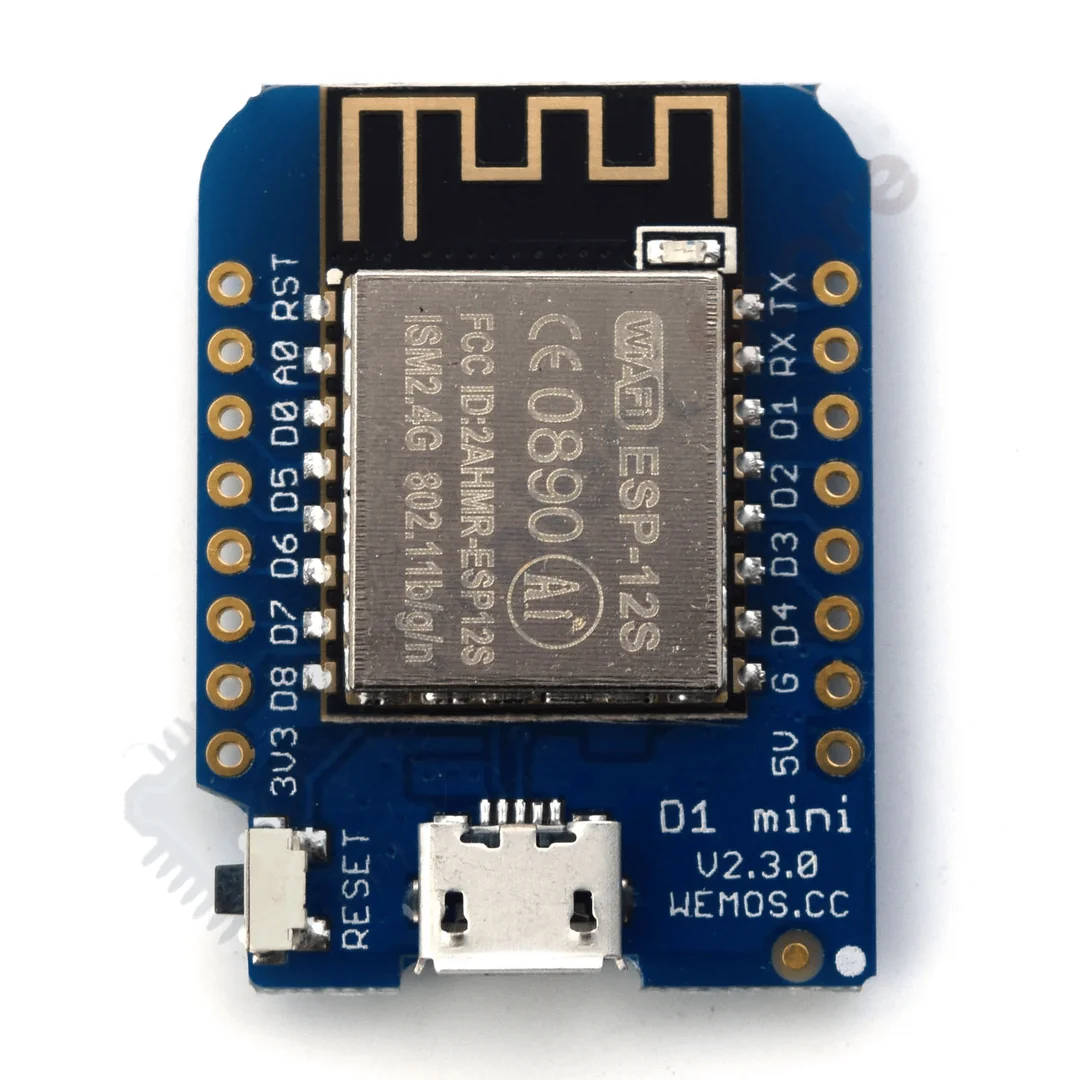

Wemos D1 Mini ESP8266 WiFi Microcontroller Board
The Wemos D1 Mini is a compact, breadboard-friendly IoT development board based on the ESP8266EX microcontroller. Equipped with 4MB of flash memory, integrated 802.11 b/g/n Wi-Fi, and a convenient Micro-USB interface with CH340G USB-to-UART converter, it is the 1 choice for miniature smart sensors and connected devices.
⚡ Technical Specifications:
- Microcontroller: ESP8266EX (80 MHz / 160 MHz clock speed)
- Flash Memory: 4 Megabytes (32 Megabits)
- Digital I/O Pins: 11 pins (All support Interrupt, PWM, I2C, and One-Wire except D0)
- Analog Input: 1x ADC Pin (0-3.3V input range)
- USB Interface: Micro-USB with on-board CH340G chip & auto-reset circuit
- Operating Voltage: 3.3V (Built-in 5V to 3.3V 500mA regulator)
- Dimensions: 34.2mm x 25.6mm (Super lightweight 5g)
🛠️ Applications:
- Battery-operated wireless temperature/humidity monitors
- Smart relay modules for home lighting automation
- Weather stations and remote telemetry nodes
- DIY Robotics and wearable IoT electronics
What's Included in the Package:
- 1x Wemos D1 Mini ESP8266 Development Board
- 2x Standard Male Header Pins
- 2x Long Female Header Pins
- 2x Short Female Header Pins
Pinout Interfacing & Testing Guide:
Check the silkscreen pin labels (VCC, GND, SDA/SCL or I/O) and confirm whether your microcontroller uses 3.3V or 5V logic.
Wire the power, ground, and signal pins to your Arduino, ESP32, or Raspberry Pi using breadboard jumper wires.
Upload a standard test sketch via Arduino IDE or MicroPython and verify live readings on the Serial Monitor.
Need a Custom 3D Printed Casing or Multilayer PCB?
Get custom snap-fit enclosures and robotics parts printed via our custom 3D printing service in Lahore & Pakistan, or order industrial double-sided circuit boards through our custom PCB fabrication service with nationwide delivery.
