IR Infrared Obstacle Avoidance Proximity Sensor Module
Active infrared obstacle detection sensor with LM393 comparator, adjustable potentiometer sensitivity (2cm–30cm), and 3.3V–5V logic for robotics and line tracking.
IR Infrared Obstacle Avoidance Proximity Sensor Module is an original, pre-tested electronic module designed for Arduino, ESP32, Raspberry Pi, robotics, and embedded engineering projects. Includes verified pinout compatibility and nationwide express shipping across Pakistan.
IR Infrared Obstacle Avoidance Proximity Sensor Module

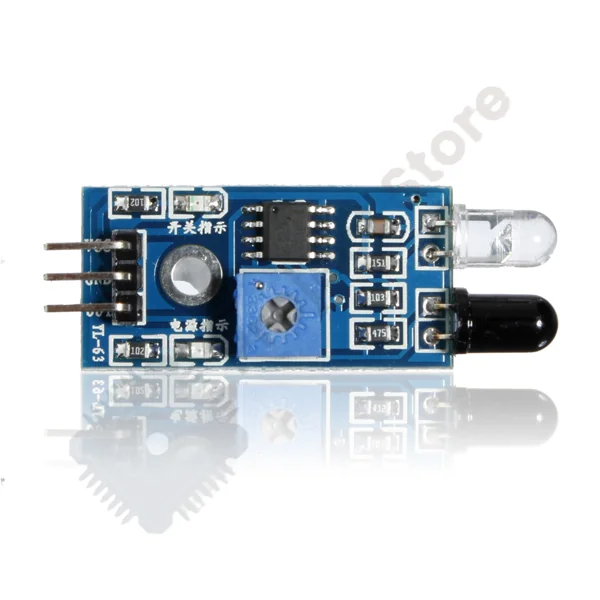

This active IR Infrared Obstacle Avoidance Sensor uses an infrared emitter and photodiode receiver pair with an on-board LM393 voltage comparator to detect obstacles in front of mobile robots. The detection range can be dialed in from 2cm up to 30cm via the precision multi-turn trimmer potentiometer.
⚡ Technical Specifications:
- Operating Voltage: 3.3V to 5.0V DC (Directly compatible with 3.3V ESP32 & 5V Arduino)
- Detection Distance: 2 cm to 30 cm (Adjustable via potentiometer)
- Detection Angle: 35° cone
- Comparator IC: LM393 High-Speed Voltage Comparator
- Output Type: Digital switching output (0 / 1 TTL logic)
- Status Indicators: Power LED (Red) + Obstacle Detection Indicator LED (Green)
- Dimensions: 32mm x 14mm with M3 mounting hole
🛠️ Applications:
- Line Follower Robots & White/Black Surface Trackers
- Obstacle Avoidance Autonomous Vehicles
- Touchless Sanitary Dispensers & Proximity Switches
- Conveyor Belt Object Counting Sensors
What's Included in the Package:
- 1x IR Infrared Obstacle Avoidance Sensor Module with LM393
Pinout Interfacing & Testing Guide:
Check the silkscreen pin labels (VCC, GND, SDA/SCL or I/O) and confirm whether your microcontroller uses 3.3V or 5V logic.
Wire the power, ground, and signal pins to your Arduino, ESP32, or Raspberry Pi using breadboard jumper wires.
Upload a standard test sketch via Arduino IDE or MicroPython and verify live readings on the Serial Monitor.
