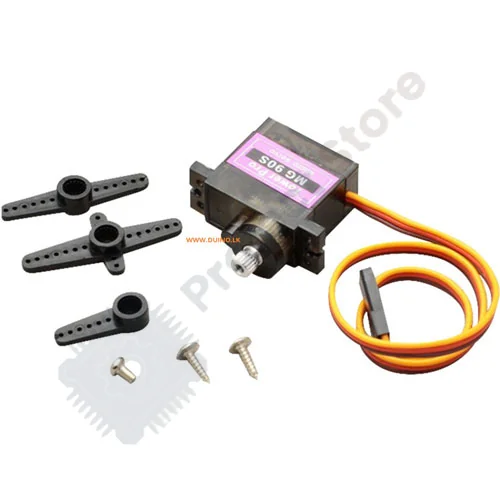

TowerPro MG90S Metal Gear Micro Servo Motor (180°)
Heavy-duty MG90S micro servo with full metal gears, 2.2 kg/cm torque, ball bearing output shaft, and fast 0.08s speed for high-stress robotics and steering.
TowerPro MG90S Metal Gear Micro Servo Motor (180°) is an original, pre-tested electronic module designed for Arduino, ESP32, Raspberry Pi, robotics, and embedded engineering projects. Includes verified pinout compatibility and nationwide express shipping across Pakistan.
TowerPro MG90S High-Torque Metal Gear Micro Servo
The TowerPro MG90S is the heavy-duty metal-gear upgrade to the classic SG90. Built with an all-metal gear train and dual ball-bearing output shaft support, the MG90S withstands high mechanical stress, impacts, and continuous high-load operations without gear stripping.
⚡ Technical Specifications:
- Operating Voltage: 4.8V to 6.6V DC
- Stall Torque: 2.2 kg-cm (4.8V) / 2.5 kg-cm (6.0V)
- Operating Speed: 0.10 sec/60° (4.8V) / 0.08 sec/60° (6.0V)
- Gear Train: 100% Metal Alloy Gears (Brass + Aluminum)
- Bearing Type: Top Ball Bearing for reduced friction
- Control Signal: Standard Analog PWM (50 Hz)
- Dimensions: 22.8mm x 12.2mm x 28.5mm
- Weight: 13.4 grams
🛠️ Applications:
- High-Torque Bipedal & Quadruped Walking Robots (e.g. SpiderBot)
- Robotic Grippers carrying physical payloads
- High-Speed RC Car Steering & Drone Gimbal Stabilization
What's Included in the Package:
- 1x TowerPro MG90S Metal Gear Micro Servo Motor
- 3x Heavy-Duty Reinforced Servo Horns
- 3x Metal Gear Mounting Screws
Pinout Interfacing & Testing Guide:
Check the silkscreen pin labels (VCC, GND, SDA/SCL or I/O) and confirm whether your microcontroller uses 3.3V or 5V logic.
Wire the power, ground, and signal pins to your Arduino, ESP32, or Raspberry Pi using breadboard jumper wires.
Upload a standard test sketch via Arduino IDE or MicroPython and verify live readings on the Serial Monitor.
Need a Custom 3D Printed Casing or Multilayer PCB?
Get custom snap-fit enclosures and robotics parts printed via our custom 3D printing service in Lahore & Pakistan, or order industrial double-sided circuit boards through our custom PCB fabrication service with nationwide delivery.
