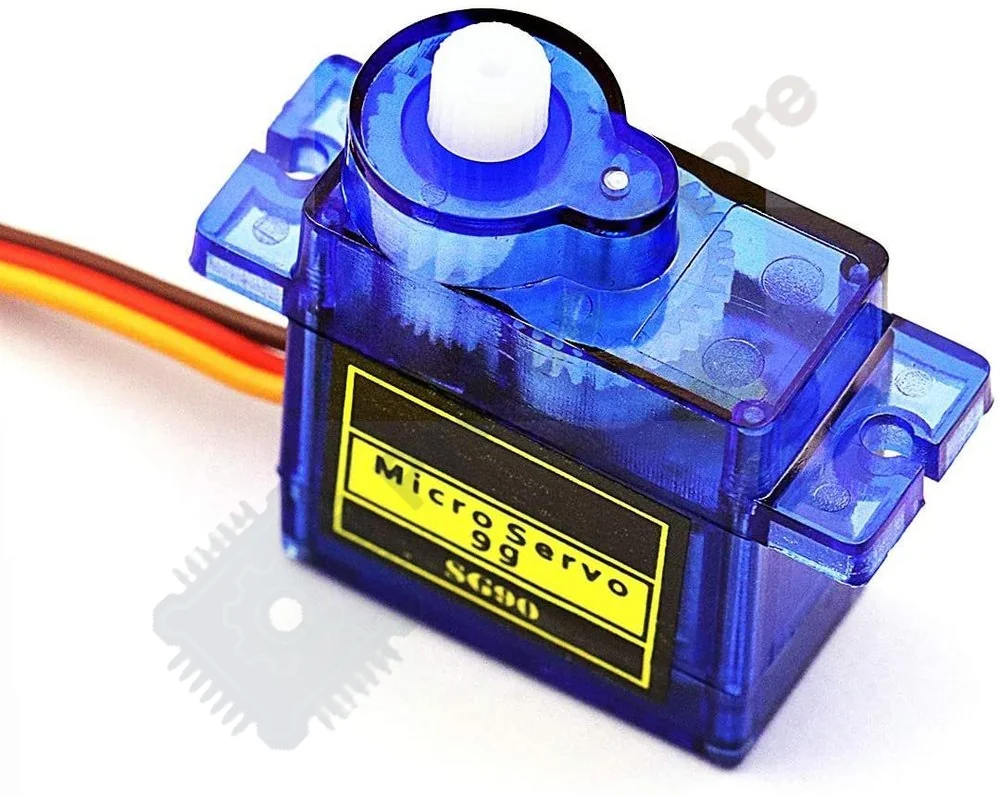

TowerPro SG90 9g Micro Servo Motor (180° Rotation)
High-torque 9g micro servo motor with 1.6 kg/cm stall torque, 180-degree rotation, and durable nylon gears for robotics, RC planes, and Arduino projects.
TowerPro SG90 9g Micro Servo Motor (180° Rotation) is an original, pre-tested electronic module designed for Arduino, ESP32, Raspberry Pi, robotics, and embedded engineering projects. Includes verified pinout compatibility and nationwide express shipping across Pakistan.
TowerPro SG90 9g Micro Servo Motor (180° Rotation)
The TowerPro SG90 is the world's most popular miniature servo motor for makers, hobbyists, and roboticists. Offering an outstanding torque-to-weight ratio in a featherlight 9-gram form factor, it delivers precise angular positioning via standard PWM control signals from Arduino, ESP32, Raspberry Pi, or RC receivers.
⚡ Technical Specifications:
- Operating Voltage: 4.8V to 6.0V DC
- Stall Torque: 1.6 kg-cm (4.8V) / 1.8 kg-cm (6.0V)
- Operating Speed: 0.12 sec / 60 degrees (4.8V)
- Rotation Angle: 180° (90° in each direction)
- Gear Material: High-durability POM Nylon Gears
- Dead Band Width: 10 µs
- Connector Wire Length: 250mm standard 3-pin (Signal: Orange, VCC: Red, GND: Brown)
- Weight: 9.0 grams (0.32 oz)
🛠️ Applications:
- Robotic Arms, Grippers, and Hexapod Walkers
- Pan-and-Tilt Camera Mounts & Sensor Sweepers
- RC Airplanes, Drones, and Steering Mechanisms
- Automated Smart Locks & Flap Controllers
What's Included in the Package:
- 1x TowerPro SG90 9g Micro Servo Motor
- 3x Multipurpose Servo Horns / Arms
- 3x Precision Mounting Screws
Pinout Interfacing & Testing Guide:
Check the silkscreen pin labels (VCC, GND, SDA/SCL or I/O) and confirm whether your microcontroller uses 3.3V or 5V logic.
Wire the power, ground, and signal pins to your Arduino, ESP32, or Raspberry Pi using breadboard jumper wires.
Upload a standard test sketch via Arduino IDE or MicroPython and verify live readings on the Serial Monitor.
